TURBO BLOWER UV CURED GRP
Turbo Blower image

Turbo Blower

PHC Turbo Blower offers exceptional performance with great energy efficiency. Its compact size saves valuable space, while operating quietly at noise levels below 85 dB. Designed for minimal vibration, it features an oil-free and gear-free system, requiring only filter maintenance. This results in significantly reduced maintenance costs and enhanced long-term reliability.

Ranges

Turbo Blower ATB image

ATB

ALL-AROUND TURBO BLOWER

Born to be versatile
Related Power :
6~37 kW (10~50HP)

  • Oil-free high-efficiency operation
  • Easy operation like PD blowers.
  • Ultra compact size and light weight
  • Quick and easy troubleshooting
  • No more complicated control electronics

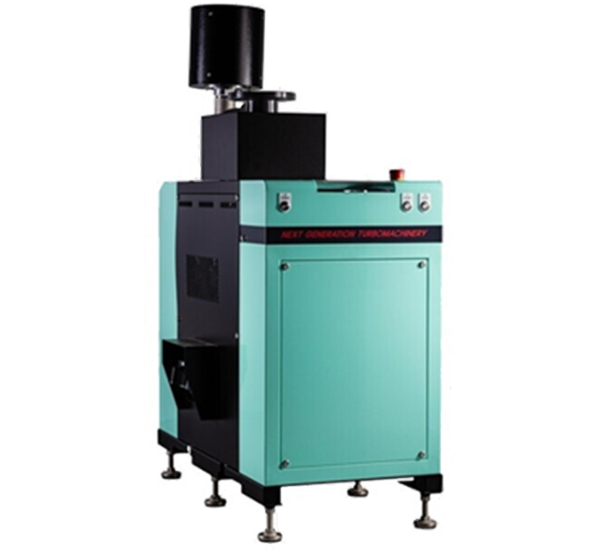

Turbo Blower CTB image

CTB

COMPACT TURBO BLOWER

Innovation
Related Power :
8~37 kW (10~50HP)

  • Compact size and light weight compared to conventional small capacity blowers
  • High efficiency with small capacity
  • Patented dust-tight enclosed cooling design (no H2 gas corrosion)
  • Quick and easy troubleshooting with "Swap and Fix" modular components
  • High pressure capability to meet various applications (up to 20 PSIG)

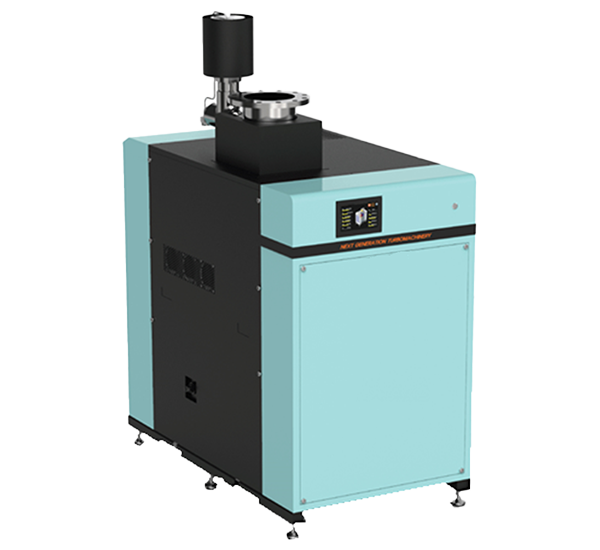

Turbo Blower STB image

STB

STANDARD TURBO BLOWER

The improvement
Related Power :
45~300kW (60~400HP)

  • Stable and improved operation with an optimal air foil bearing load capacity
  • Improved operation quality with patented air foil bearings and dust-tight air-cooled sound enclosure
  • Optimized selection between wide flow turndown and high efficiency
  • Easy HMI design with local monitoring option

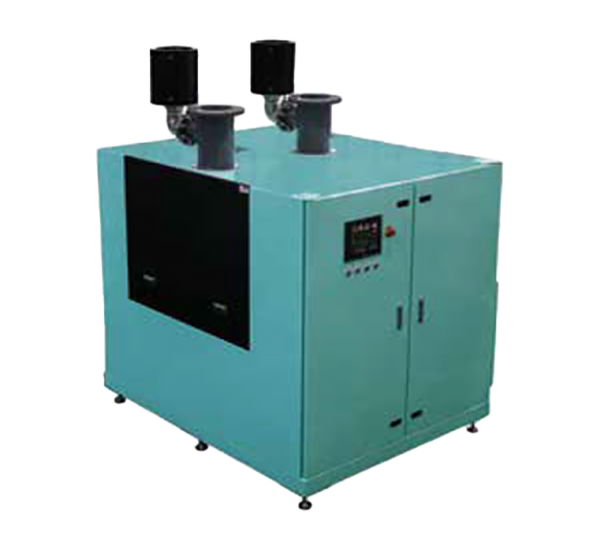

Turbo Blower MTB image

MTB

MULTI-CORE TURBO BLOWER

The expansion and flexibility
Related Power :
37k~690kW above (50~900HP above)

  • Multiple cores operating at best efficiency point (BEP) with highly improved flow turndown ratio
  • Operating at the optimal capacity based on real-time demand
  • Enable to operate the system continuously despite the single core failure. No interference of inlet air flow and minimal downtime for maintenance
  • Built-in backup system with an independent operation mode of each core

Specification

Turbo Blower ATB image

ATB

ALL-AROUND TURBO BLOWER

Turbo Blower CTB image

CTB

COMPACT TURBO BLOWER

Pressure Ratio Prs. Rise / △P kPa Model & Volume flow rate (m3/min)
2.28 130 0.76 1.68 2.47 3.47 4.6 5.7 6.8 8.2 10 11 14 18
2.18 120 0.81 1.8 2.65 3.72 5 6.2 7.3 8.8 11 12 14 19
2.09 110 0.88 1.95 2.86 4.02 5.3 6.6 7.8 9.5 12 13 16 20
1.99 100 0.95 2.12 3.11 4.37 5.8 7.2 8.5 10.3 13 14 17 22
1.89 90 1.04 2.32 3.41 4.79 6.4 7.9 9.3 11.3 14 16 19 24
1.79 80 1.16 2.58 3.79 5.32 7.1 8.8 10.4 12.5 15 18 21 27
1.69 70 1.3 2.9 4.26 5.98 8 9.9 11.7 14.1 17 20 23 30
1.59 60 1.49 3.32 4.88 6.85 9.2 11.3 13.3 16.2 20 23 27 35
1.49 50 1.75 3.89 5.72 8.04 10.8 13.3 15.7 19 23 27 31 41
1.39 40 2.13 4.74 6.96 9.78 13.2 16.2 19.1 23.1 28 32 38 49
1.3 30 2.74 6.1 8.97 12.59 17 20.8 24.5 29.7 36 42 49 64
1.2 20 3.92 8.71 12.81 17.98 24.4 29.7 35 42.4 51 59 70 91
Rated Power kW 2 4 6 8 11 13 15 18 22 25 29 37
HP 2.6 5.3 8 11 15 17 20 24 30 34 39 50
Package S0 S1 S2 S4
Input voltage V 220 ~ 480 380 ~ 480
Frequency Hz 50 ~ 60
Cooling Air cooled
Bearing Air bearing

(옆으로 스크롤시 내용을 더 확인할 수 있습니다.)

Turbo Blower STB image

STB

STANDARD TURBO BLOWER

Pressure Ratio Prs. Rise / △P kPa Model & Volume flow rate (m3/min)
2.28 130 21 26 38 45 58 66 74 92 114 134 155
2.18 120 23 28 39 49 60 70 80 99 123 144 166
2.09 110 24 30 42 53 65 76 86 107 132 155 179
1.99 100 26 33 45 57 71 83 93 116 144 168 195
1.89 90 29 36 50 63 78 91 102 127 158 185 213
1.79 80 32 40 55 70 86 100 114 141 175 205 237
1.69 70 36 45 62 78 97 113 128 159 197 230 266
1.59 60 41 51 71 90 111 129 146 182 226 264 305
1.49 50 49 60 84 105 130 152 172 213 265 310 358
1.39 40 59 73 102 128 158 185 209 260 322 377 435
1.3 30 76 94 131 165 204 238 269 334 415 485 561
1.2 20 109 134 187 235 291 340 384 477 592 693 801
Rated Power kW 45 55 75 95 115 135 150 185 225 265 300
HP 60 74 101 127 154 181 201 248 302 355 402
Package S6 S8 S10 S12 S14
Input voltage V 380 ~ 480
Frequency Hz 50 ~ 60
Cooling Air cooled
Bearing Air bearing

(옆으로 스크롤시 내용을 더 확인할 수 있습니다.)

Turbo Blower MTB image

MTB

MULTI-CORE TURBO BLOWER

Pressure Ratio Prs. Rise / △P kPa Model & Volume flow rate (m3/min)
Number of cores
2 4 6 8
2.28 130 20 27 35 42 52 72 91 112 84 104 144 182 224 126 156 217 273 337 168 207 289 363 449
2.18 120 21 29 38 45 56 77 97 120 90 111 155 195 241 135 167 232 292 361 180 223 310 390 482
2.09 110 23 31 41 49 60 84 105 130 97 120 157 210 260 146 180 251 316 390 195 240 334 421 520
1.99 100 25 34 44 53 65 91 114 141 106 131 182 229 283 159 196 273 343 424 212 261 364 458 565
1.89 90 27 37 48 58 72 100 126 155 116 143 199 251 310 174 215 299 377 465 232 287 399 502 620
1.79 80 30 41 54 64 79 111 139 172 129 159 221 278 344 193 238 332 418 516 257 318 442 557 688
1.69 70 34 47 60 72 89 124 157 193 145 179 249 313 387 217 268 373 470 580 290 357 497 626 773
1.59 60 39 53 69 83 102 142 179 221 166 205 285 359 443 249 307 427 538 664 332 409 570 717 886
1.49 50 46 63 81 97 120 167 210 260 195 240 334 421 520 292 360 501 631 780 389 480 669 842 1040
1.39 40 56 76 99 118 146 203 256 316 237 292 407 512 632 355 438 610 768 949 473 585 813 1024 1265
1.3 30 72 98 127 152 188 262 330 407 305 376 524 659 814 457 565 786 989 1221 610 753 1047 1318 1629
1.2 20 103 140 182 218 269 374 471 581 435 537 748 941 1163 653 806 1122 1412 1744 870 1075 1496 1883 2326
Rated Power kW 44 58 74 90 110 150 190 230 180 220 300 380 460 270 330 450 570 690 360 440 600 760 920
HP 59 78 99 121 148 201 255 308 241 295 402 510 617 362 443 603 764 925 483 590 805 1019 1234
Package D2 D3 D4 Q3 Q4 H3 H4 X3 X4
Input voltage V 380 ~ 480
Frequency Hz 50 ~ 60
Cooling Air cooled
Bearing Air bearing

(옆으로 스크롤시 내용을 더 확인할 수 있습니다.)

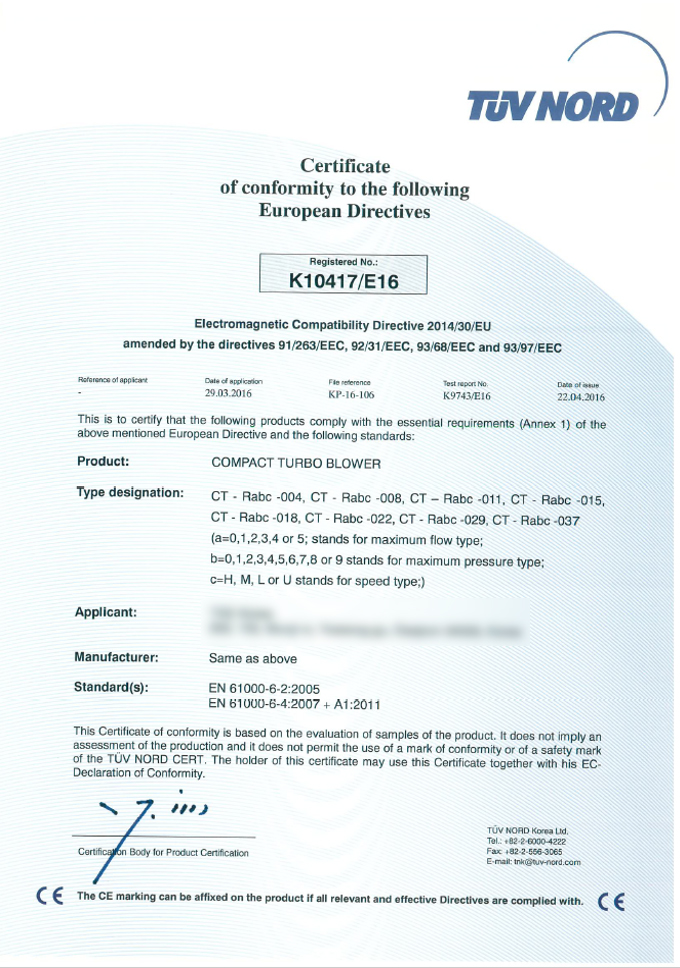

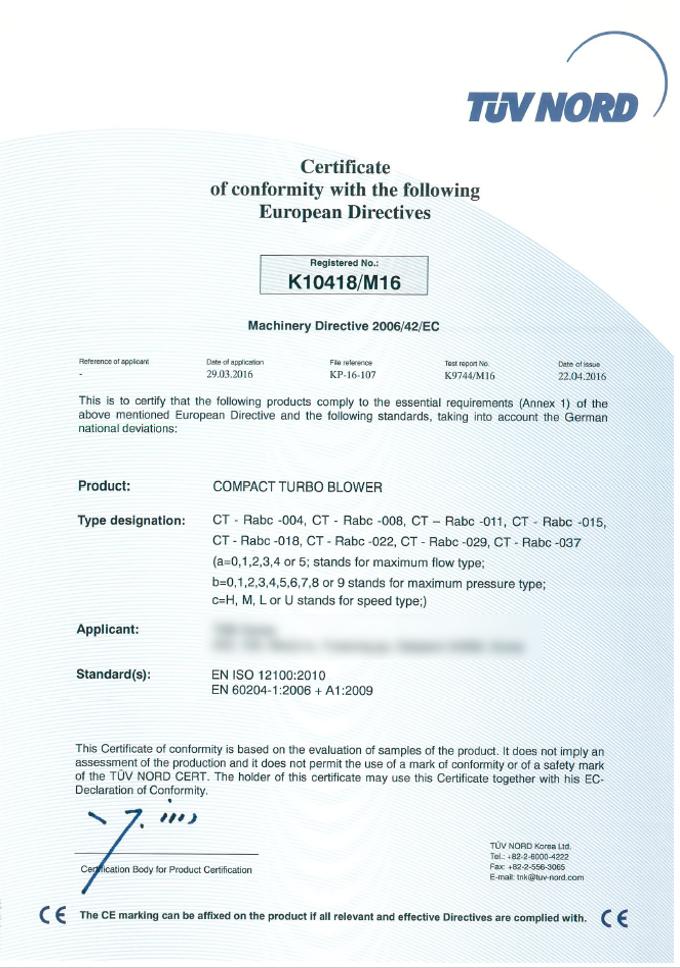

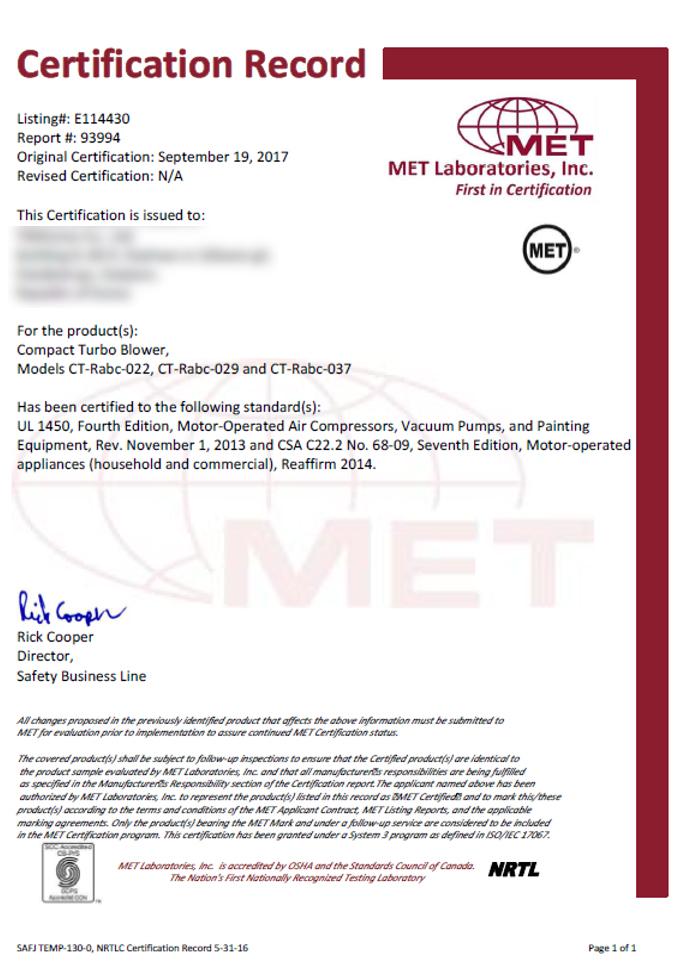

Certified Excellence

  • Turbo Blower Certified Excellence image
  • Turbo Blower Certified Excellence image
  • Turbo Blower Certified Excellence image
  • Turbo Blower Certified Excellence image

Applications

Water and Wastewater Treatment Process image

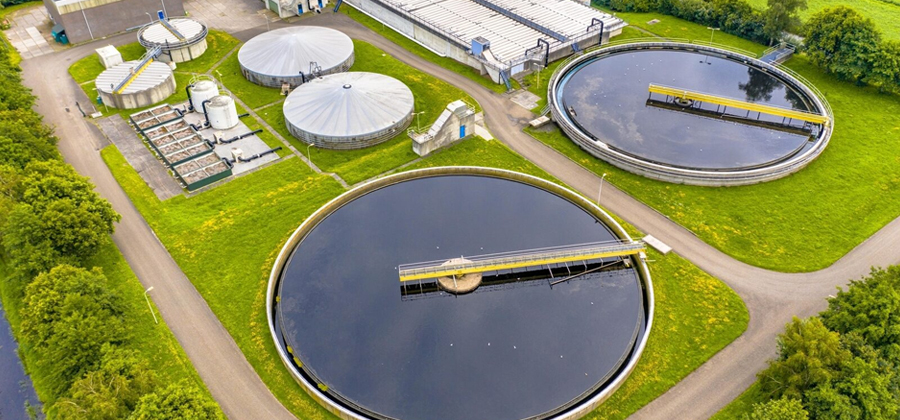

Water and Wastewater Treatment Process

  • Fine bubble or coarse bubble aeration
  • Activated sludge, MBR/MBBR
  • Deep aeration, grit chamber aeration
  • Filter backwash

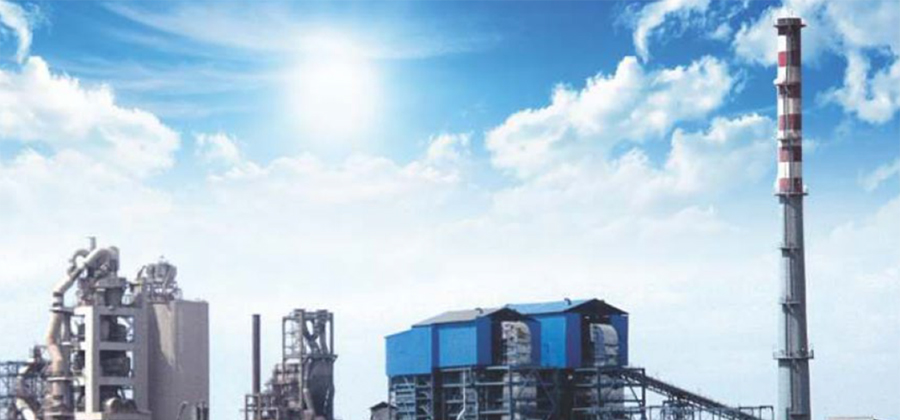

Thermal Power Plant image

Thermal Power Plant

  • Circulating fluidized bed combustion system
  • Increased combustion efficiency, enhanced heat transfer
  • Minimizes pollution by manages exhaust gases
Pneumatic Conveying image

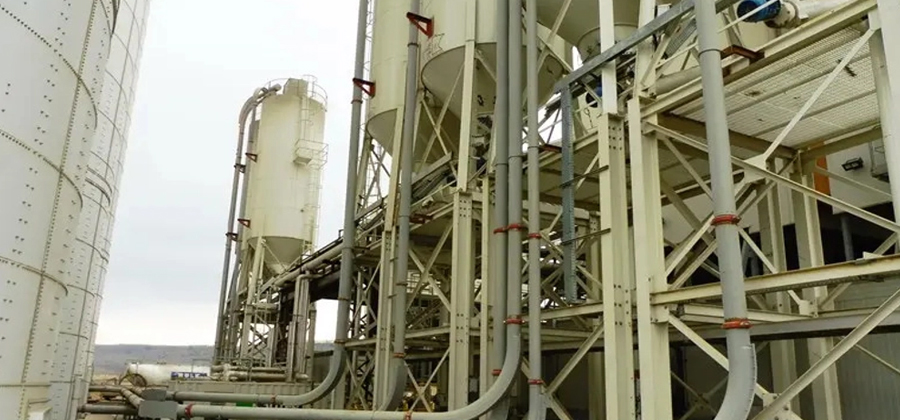

Pneumatic Conveying

  • Petrochemical pellet, cement powder
  • Powder and tablet in pharmaceutical industry
  • Sugar, flour, grain and molt in food industry
  • Lime in mining industry
  • Twine and dyeing process in textile industry

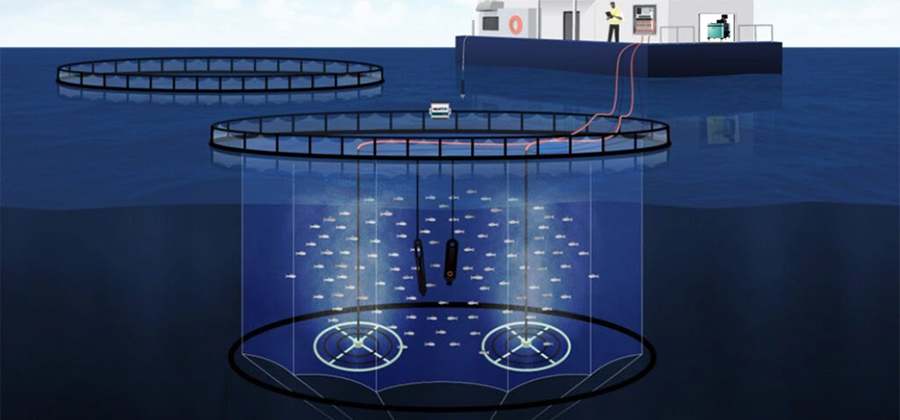

Fish Farm image

Fish Farm

  • Circulating fluidized bed combustion system
  • Ensures even distribution of temperature and oxygen
  • Helps decompose organic matter, reducing harmful substances
  • Suppresses growth of harmful anaerobic pathogens
