PHC 농기계(관리기, 광역 방제기, 이앙기, 육묘기, 트랙터 등)은 혹독한 현장 조건에서도 안정적인 작동을 보장하도록 고품질의 내구성 있는 부품으로 설계되었습니다. 견고한 성능과 정밀한 시스템, 낮은 유지보수 요구 사항을 통해 장기간 안심하고 사용할 수 있습니다.
또한 강력한 애프터서비스 지원과 신속한 부품 공급으로 전문 사용자가 원하는 작업 효율성과 장기적인 가치를 동시에 제공합니다.
관리기
승용관리기
스피드스프레이어

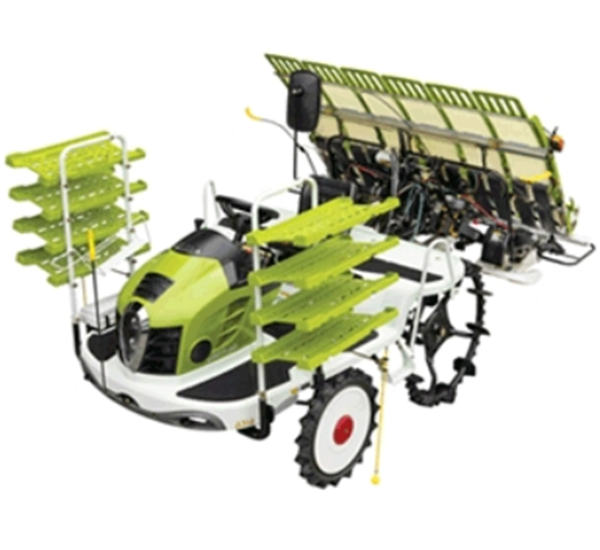

이앙기

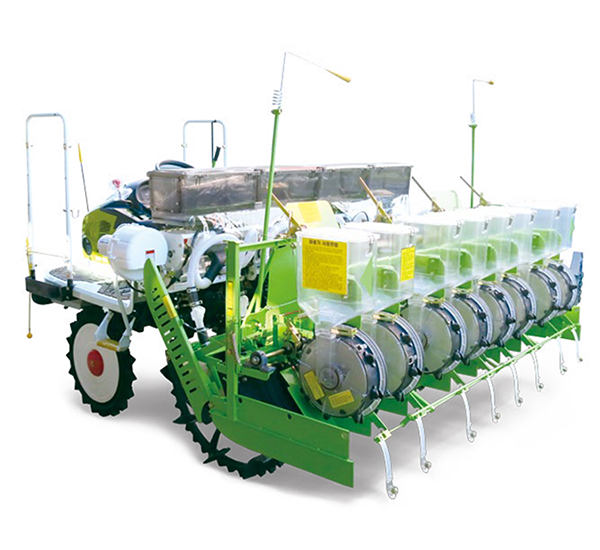

직파기
트랙터

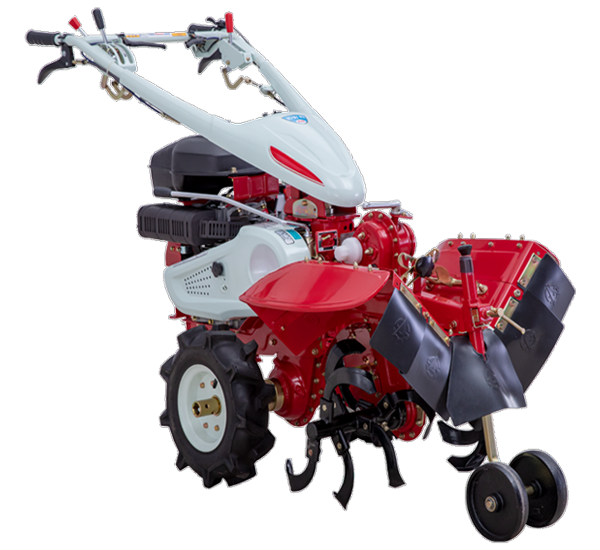

AMC-880M
| DIMENSIONS | Overall Length (mm) | 1490 ~ 1700 |
|---|---|---|
| Overall Width(mm) | 680 ~ 850 | |
| Overall Height (mm) | 820 ~ 1140 | |
| Weight (With Rotary Tiller)(kg) | 155 | |
| ENGINE | Model(Brand/Origin) | G810L (Keyang/Korea) |
| Type |
Air Cooled 4Cycle
Vertical Gasoline Engine |
|
| Max. Output (Kw/rpm) | 5.3 / 1800 | |
| Bore x Stroke(mm) | 78 x 61 | |
| Displacement(cc) | 291 | |
| Gear Oil | SAE 10W-30 or 20W-40 | |
| Starting System | Recoil | |
| Weight(kg) | 30 | |
| Main Transmission | Forward : 4, Reverse : 4 | |
| Main Clutch | W-Belt Tension Type | |
| Standard Tire | 4.00 - 7(2PR) | |
| Wheel Distance (mm) | 265 ~ 860 | |
| HANDLE ADJUST. | Up & Down | 5 Stage |
| Left & Right | 12 Stage | |
| Control Clutch System | Ball Spline Type | |
| PTO RPM | Low : 714, High : 1350 | |
| Rotary Transmission (Gear shift) | Forward : 8, Reverse : 4 | |
(옆으로 스크롤시 내용을 더 확인할 수 있습니다.)

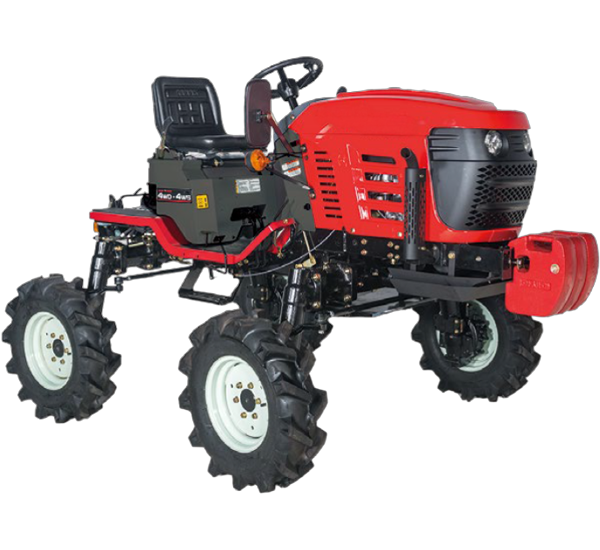

CFM-1200H
| Machine Dimensions | Length (mm) | 2296 |
|---|---|---|
| Width (mm) | 1543 | |
| Height (mm) | 1535 | |
| Weight (kg) | 743 | |
| Engine | Model | HONDA GXV630 |
| Type | Air-cooled 4-cycle 2-cylinder Vertical Gasoline | |
| Maximum Power | 14.5 / 2600 (kw/rpm) | |
| Fuel Capacity (L) | 15 | |
| Tires | 6.00 -12-4PR | |
| Clutch | Dry Multiple Disk Clutch | |
| Steering | Full Hydraulic Power Steering | |
| Brake | Wet Disk Mechanical | |
| Gearshift Levels | Forward: 8 Levels, Reverse: 4 Levels | |
| P.T.O. Rotation Speed (rpm) | Low: 634, High: 788 | |
| Wheelbase (mm) | 1180 | |
| Wheel Width (mm) | 1200 | |
| Minimum Height from Ground (mm) | Standard Wheels (580), Planting Wheels (660), Pest Controlling Wheels (740) | |
| Minimum Rotation Radius (m) | 2 | |
| Implement Lifting | Control Method | Location Based Control |
| Installation Method | 2P Link (Quick Hitch) | |
(옆으로 스크롤시 내용을 더 확인할 수 있습니다.)

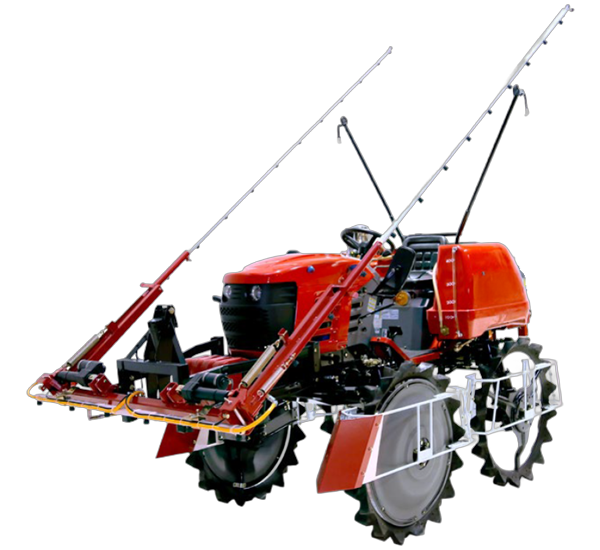

BS-1000
| Machine Dimensions | Length (mm) | 3700 |
|---|---|---|
| Width (mm) | 1500 (during work: 9150) | |
| Height (mm) | 2900 (during work: 1520) | |
| Weight (kg) | 800 (including the main machine) | |
| Liquid Chemical Tank | Capacity (L) | 400 |
| Agitation Method | Jet Agitation | |
| Sprayer | HS-90A | |
| Machine Gearshift Levels | Level 1 Low Speed ~ Level 2 High Speed | |
| Working Efficiency (ha/day) | 5 ~ 10 | |
(옆으로 스크롤시 내용을 더 확인할 수 있습니다.)

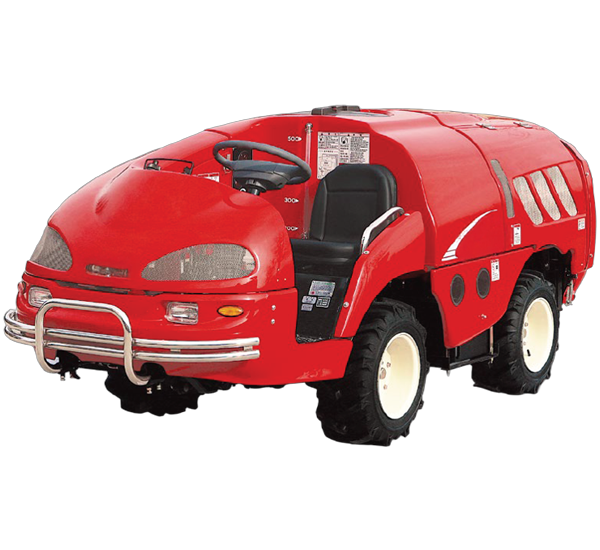

ASS-555TLD5 / ASS-555TLD6 / ASS-1016TLDⅡ
| Name | ASS-555TLD5 | ASS-555TLD6 | ASS-1016TLDⅡ | |
|---|---|---|---|---|
| Machine Size (Length x Width x Height) (mm) | 3370 x 1320 x 1300 | 3370 x 1440 x 1300 | 3790 x 1450 x 1320 | |
| Machine Weight (kg) | 1270 | 1440 | 1550 | |
| Driving Engine (kW/rpm) |
GX630 (HONDA)
Rated Power 13 (18ps) / 3600 Maximum 14.5 (20ps) / 3600 |
GX690 (HONDA)
Rated Power 14 (19ps) / 360 Maximum 16.5 (22.5ps) / 3600 |
||
| Blowing Engine (kW/rpm) | Hyundai G4FC (Gamma) Rated Power 37(50ps) / 3600 Maximum 45 (61ps) / 5000 | |||
| Power Transmission | Wheel Driver | 4-wheel Driven Wheels | ||
| Gearshift Levels | Forward: 6 Levels, Reverse: 2 Levels | Forward: 10 Levels, Reverse: 2 Levels | ||
| Driving Clutch | dry type single-plate clutch | |||
| Blowing Clutch | dry type single-plate clutch | |||
| Driving Brake | Rear wheel Hydraulic disk brake | |||
| Parking Brake | Rear wheel Hydraulic disk brake | |||
| Steering | Power steering (handle) | Forward/reverse full Hydraulic power steering (handle) | ||
| Wheels | Front Wheels | 23 x 10.00-12-6PR | 26 x10.00-12-8PR | |
| Rear Wheels | 23 x 10.00-12-6PR | 26 x10.00-12-8PR | ||
| Blower | Type, Discharge, Diameter (mm) | Axial flow 710 | ||
| Air Volume (m3/min) | 486.5 | |||
| Power Sprayer | Type, Rotation Speed (rpm) | HS-100A, 750 | ||
| Pressure (Mpa) | 1.5 ~ 2.0 | |||
| Discharge Amount (L/min) | 82 | |||
| Water Pump | Type | Jet pump | ||
| Discharge Amount (L/min) | 126 | |||
| Liquid Chemical Tank and Agitator | Material, Capacity (L) | FRP, 500 | FRP, 1000 | |
| Agitator | Mechanical Propeller | |||
| Nozzle | Nozzle Type | 2 Furnace, 2 Row, Switch Nozzle | ||
| Nozzle Hole (mm) x Number | 1.0 x 8, 1.2 x 27, 1.5 x 19 | 1.0 x 6, 1.2 x 25, 1.5 x 19 | 1.0 x 25, 1.2 x 25 | |
| Spraying Amount per Nozzle (L/min) | 1.63 2.22 3.49 | 54.3 | ||
| Cargo Box | Maximum Loading Weight (kg) | 600 | 1000 | |
| Dimension (L x W x H mm) | 1954 x 1106 x 250 | 1954 x 1286 x 250 | ||
| Minimum Rotation Radius | 2.1 | 2.3 | ||
