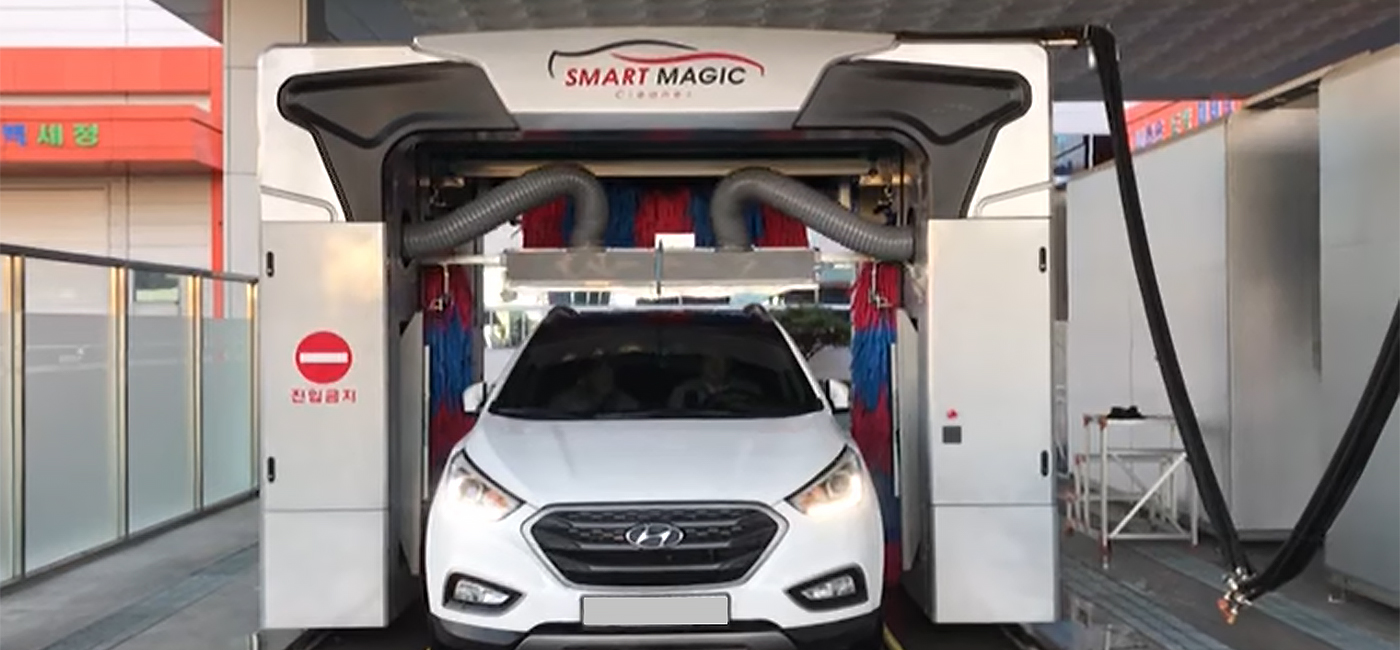

Door type image

Door type

PHC Single and double door type car wash machines are designed to meet various operational needs with durability, efficiency, and ease of use. The single door type offers a compact, space-saving solution ideal for limited areas, while still delivering reliable, fully automated cleaning with low maintenance. The double door type enhances workflow by allowing separate entry and exit, making it ideal for high-traffic environments that demand faster vehicle processing. Both types provide consistent washing performance, stable operation, and can be tailored to suit different site conditions and business scales.

Information

Single door type image

Single door type

Features

  • Car washing capacity : 10Units / Hour
  • Side brush angle control up to 15 degrees
  • Hard dirt removing system with premium & rich bubbles
  • Application of premium Urethane and Cloth brushes
  • Low operating costs
  • Simple operation system
  • Bubble High pressure water Rocker washing Top Side Brush 2 times Air Blow

Specification

  • Equipment dimensions : 3,600mm W * 3,100mm H * 2,655mm L
  • Bay required dimensions : 4,200mm W * 3,200mm H * 11,000mm L
  • Rail length : 9,600mm
  • Allowed vehicle dimensions : 2,150mm W * 2,200mm H
  • Water usage : 80~130L / 1 unit
  • Power consumption : 30kWH (380V - 3 phase, 22V single phase)
  • Chemical car Cleanser : 4 types (bubble, shampoo, wax, coating)
Double door type image

Double door type

Features

  • Car washing capacity : 20Units / Hour
  • Side brush angle control up to 15 degrees
  • Hard dirt removing system with premium & rich bubbles
  • Application of premium Urethane and Cloth brushes
  • Low operating costs
  • Simple operation system
  • Bubble High pressure water Rocker washing Top Side Brush 2 times Air Blow Finishing cloth

Specification

  • Equipment dimensions : 3,600mm W * 2,900mm H * 4,850mm L
  • Bay required dimensions : 4,200mm W * 3,200mm H * 15,000mm L
  • Rail length : 13,400mm
  • Allowed vehicle dimensions : 2,150mm W * 2,200mm H
  • Water usage : 80~130L / 1 unit
  • Power consumption : 30kWH (380V - 3 phase, 22V single phase)
  • Chemical car Cleanser : 4 types (bubble, shampoo, wax, coating)
