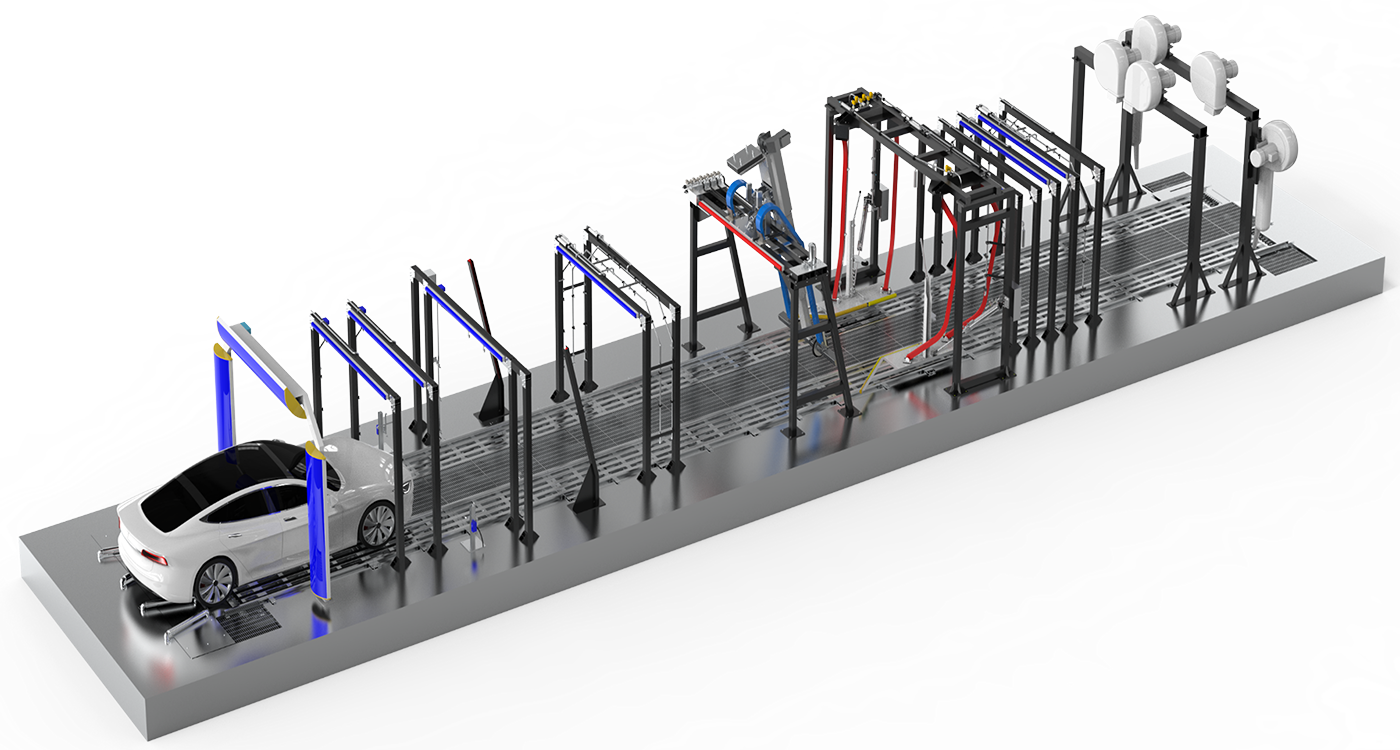

Tunnel type

PHC Tunnel-type car wash machines provide high-speed, high-capacity cleaning with enhanced safety and convenience. Features like the dual belt conveyor, precise brush tracking, powerful drying system, and magma bubble cleaning ensure efficient and thorough washing for up to 40–50 vehicles per hour.

Information

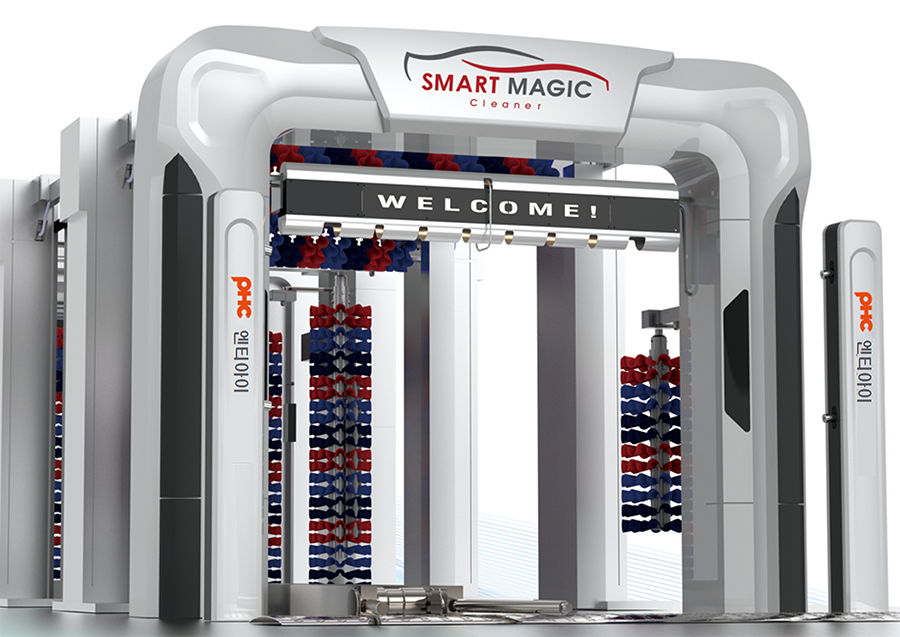

Tunnel type image

Tunnel type

Features

  • Dual belt conveyor system that ensures safety and convenience
  • Car washing capacity : 40 ~ 50Units / Hour
  • Tracking the rear side of vehicle, with the Side Brush Tracking system
  • Improved drying system
    Dual air blower and drying clothes module applied
  • Excellent cleaning function with the magma bubble system, from the front to the end of vehicle

Specification

  • Equipment dimensions : 3,850mm W * 3,100mm H * 18,000mm L
  • Required bay dimensions : 4,000mm W * 3,200mm H * 19,000mm L
  • Conveyor length : 13m, 14m, 16m, 18m ~
  • Allowed vehicle dimensions : 2,150mm W * 2,200mm H
  • Water usage : 300L / 1 unit (including underbody wash)
  • Power consumption : 40kWH (380V - 3 phase, 22V single phase)
  • Chemical car Cleanser : 4 types (bubble, shampoo, wax, coating)
